BAI Embroidery Machines

The Vision

Commercial Embroidery Machine

Take on hats, apparel, bags, and more with a powerful 15-needle commercial embroidery machine built for speed, precision, and growing production demands.

$8,600

Inquire Now

BUILT FOR PRODUCTION

Meet THE VISION — a commercial embroidery machine built for shops that don’t settle for slow. With 15 needles and speeds up to 1200 stitches per minute, it’s engineered to keep pace with real production demand, turning around jobs faster without cutting corners on stitch quality.

What sets THE VISION apart is versatility: crisp results on structured caps, smooth handling of 3D puff embroidery for eye-catching raised designs, and an intuitive touchscreen that puts full control right at your fingertips.

15 Needles

Efficient multicolor embroidery

Up to 1,200 SPM

Fast, production-ready stitching

15.7" × 19.7" Field

Room for large embroidery projects

270° Cap System

Engineered for structured caps

Create More with One Machine

From caps and apparel to patches, bags, and personalized pieces, THE VISION gives you the flexibility to take on a wide variety of embroidery projects and customer requests.

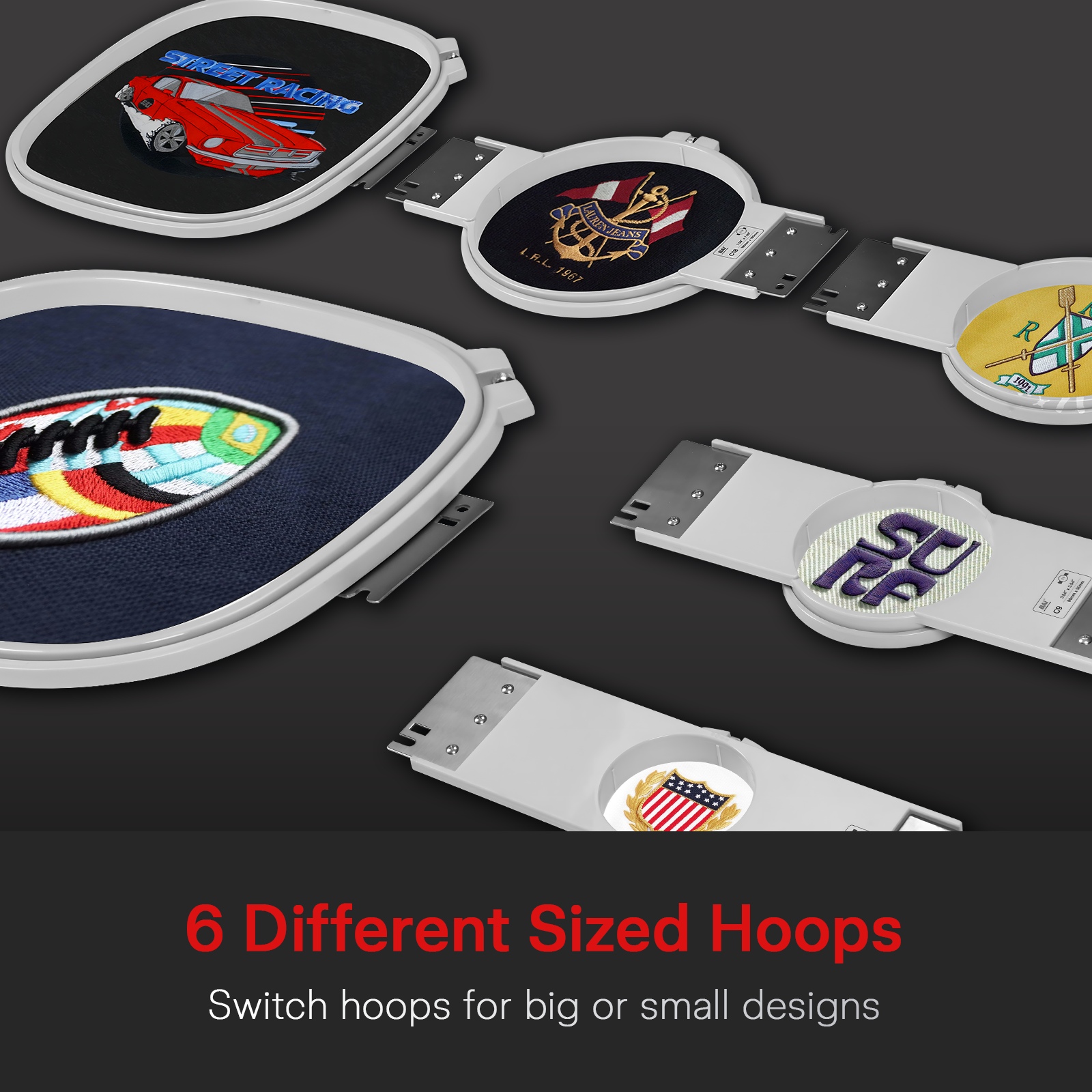

The Right Hoop for Every Job

Six included hoop sizes make it easy to match the embroidery area to your project, from compact logos and monograms to larger, more detailed designs.

Built for Better Cap Embroidery

Achieve clean, consistent stitching across a variety of cap styles with stable handling and a wide embroidery range.

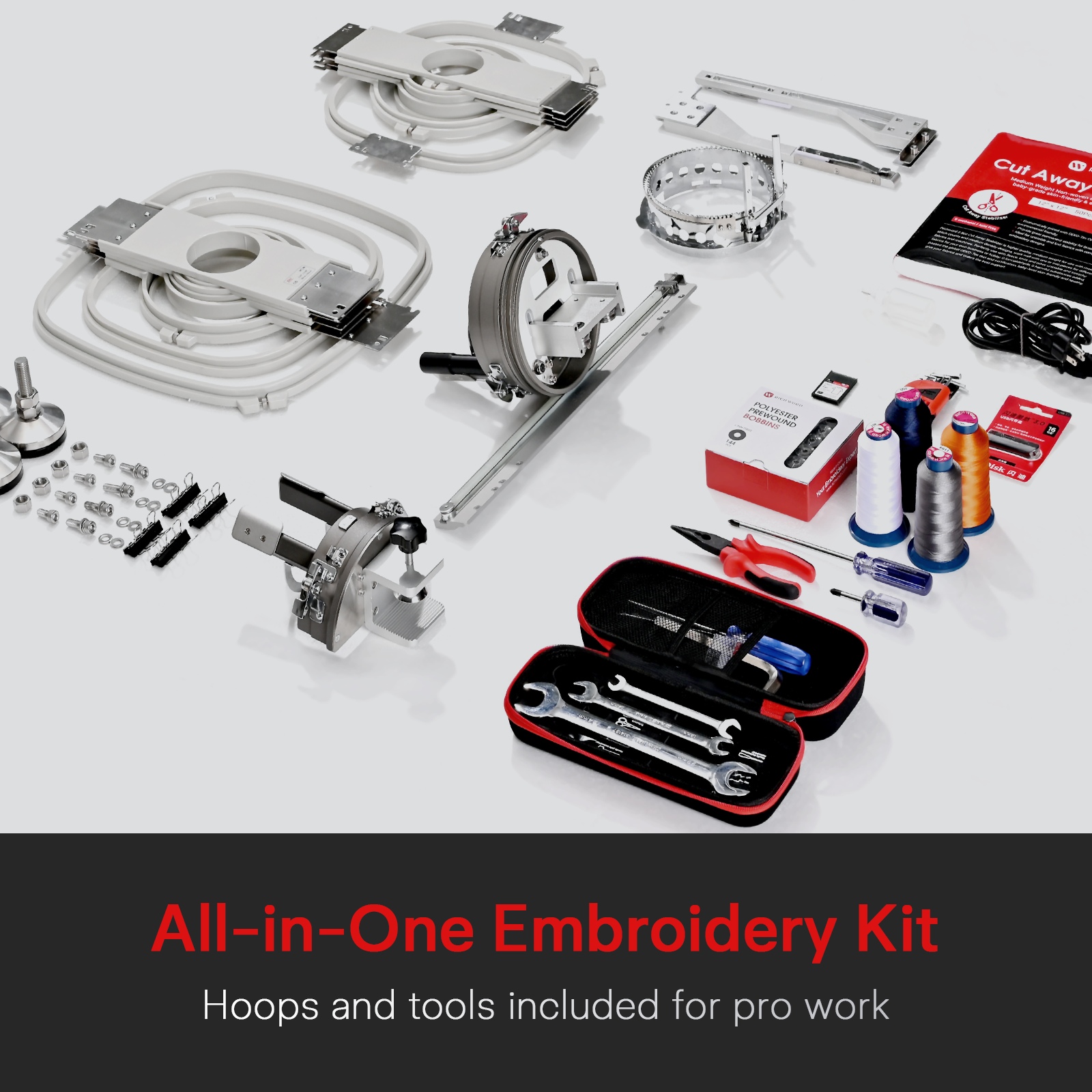

Everything You Need to Get Started

THE VISION includes a complete selection of hoops, cap accessories, tools, and essential supplies so you can begin producing professional embroidery right away.

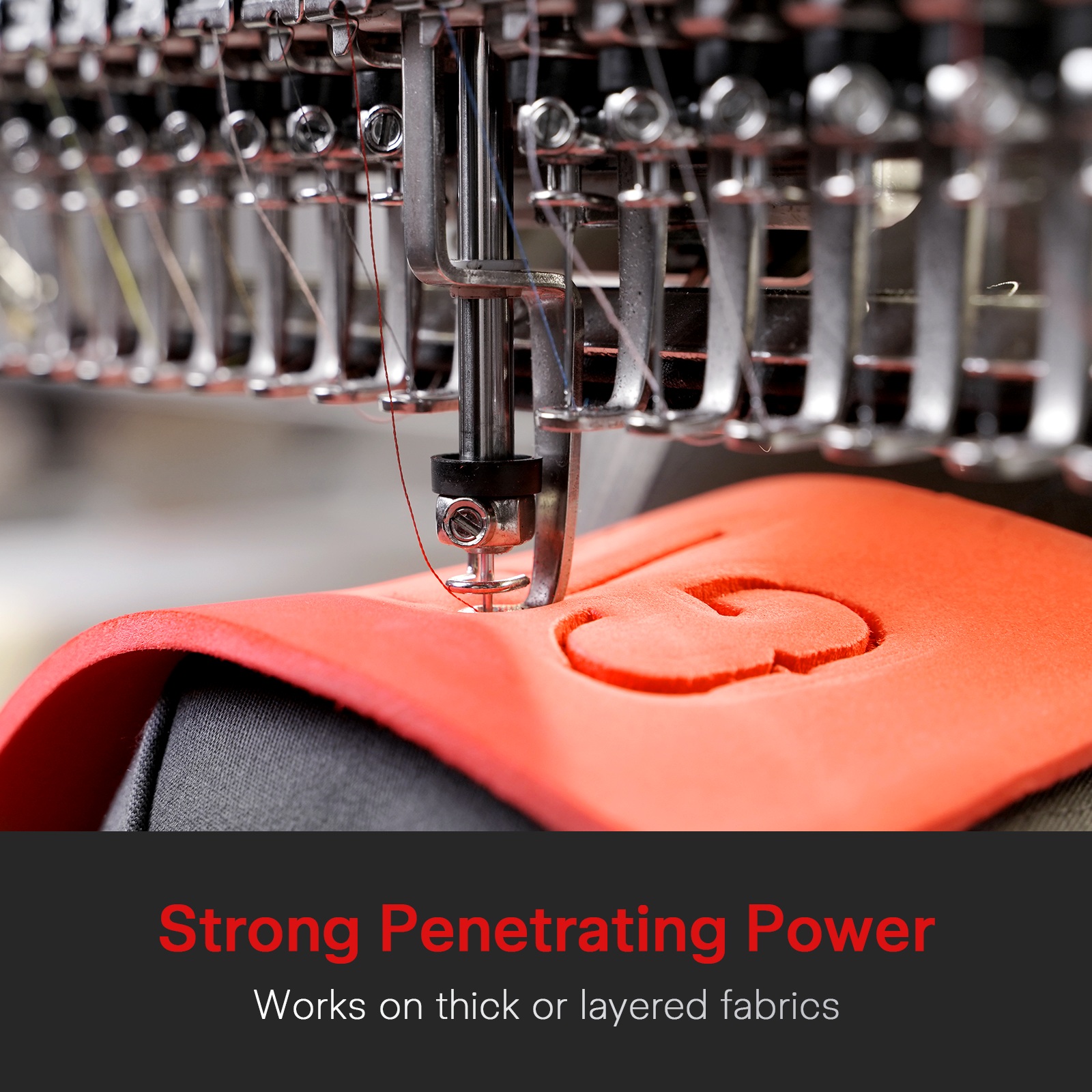

Power Through Demanding Materials

Strong needle penetration delivers clean, consistent stitching on thick, dense, or layered fabrics—helping you take on more challenging embroidery projects with confidence.

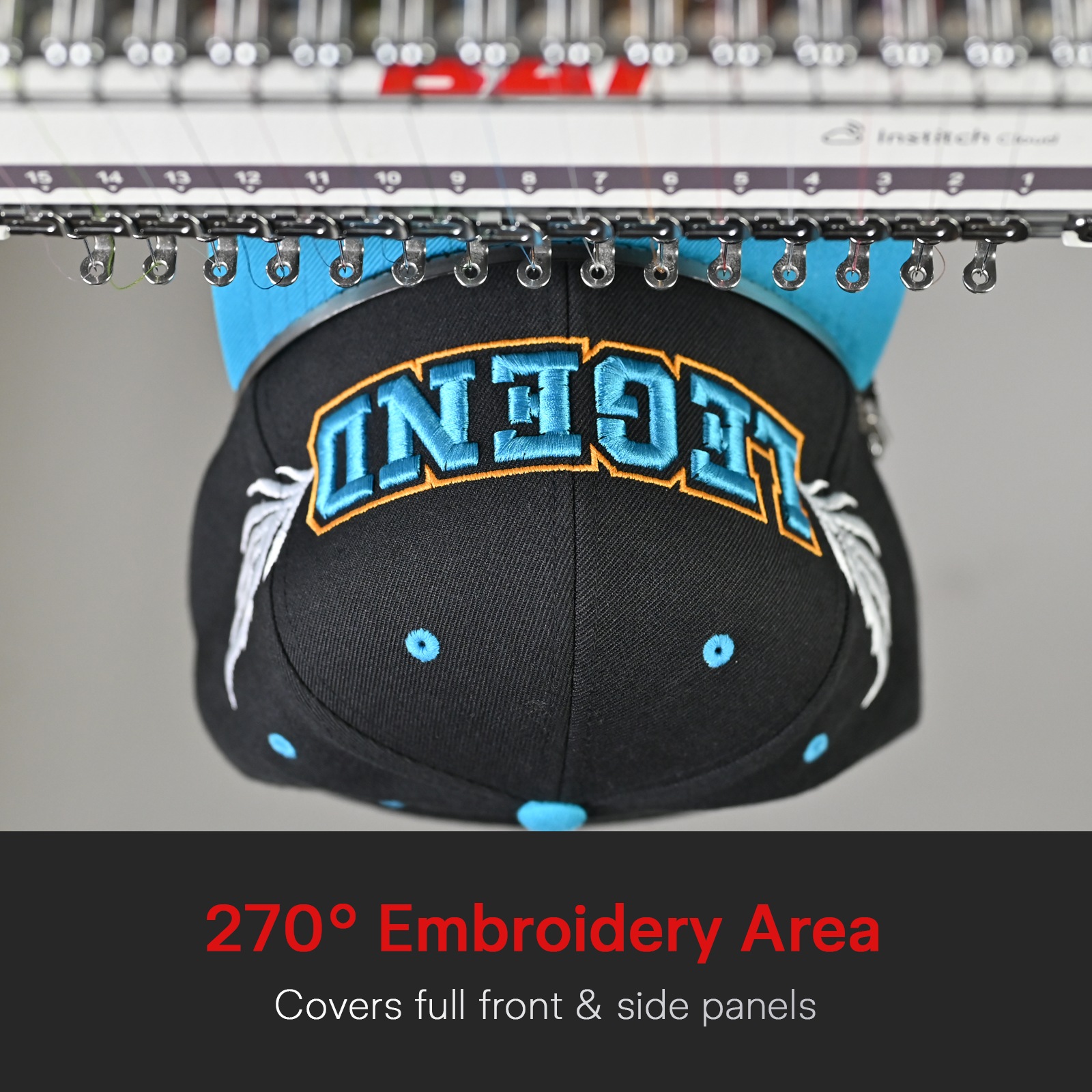

More Coverage for Cap Designs

The 270° embroidery area gives you room to stitch across the full front and side panels, making it easier to create larger, more continuous cap designs.

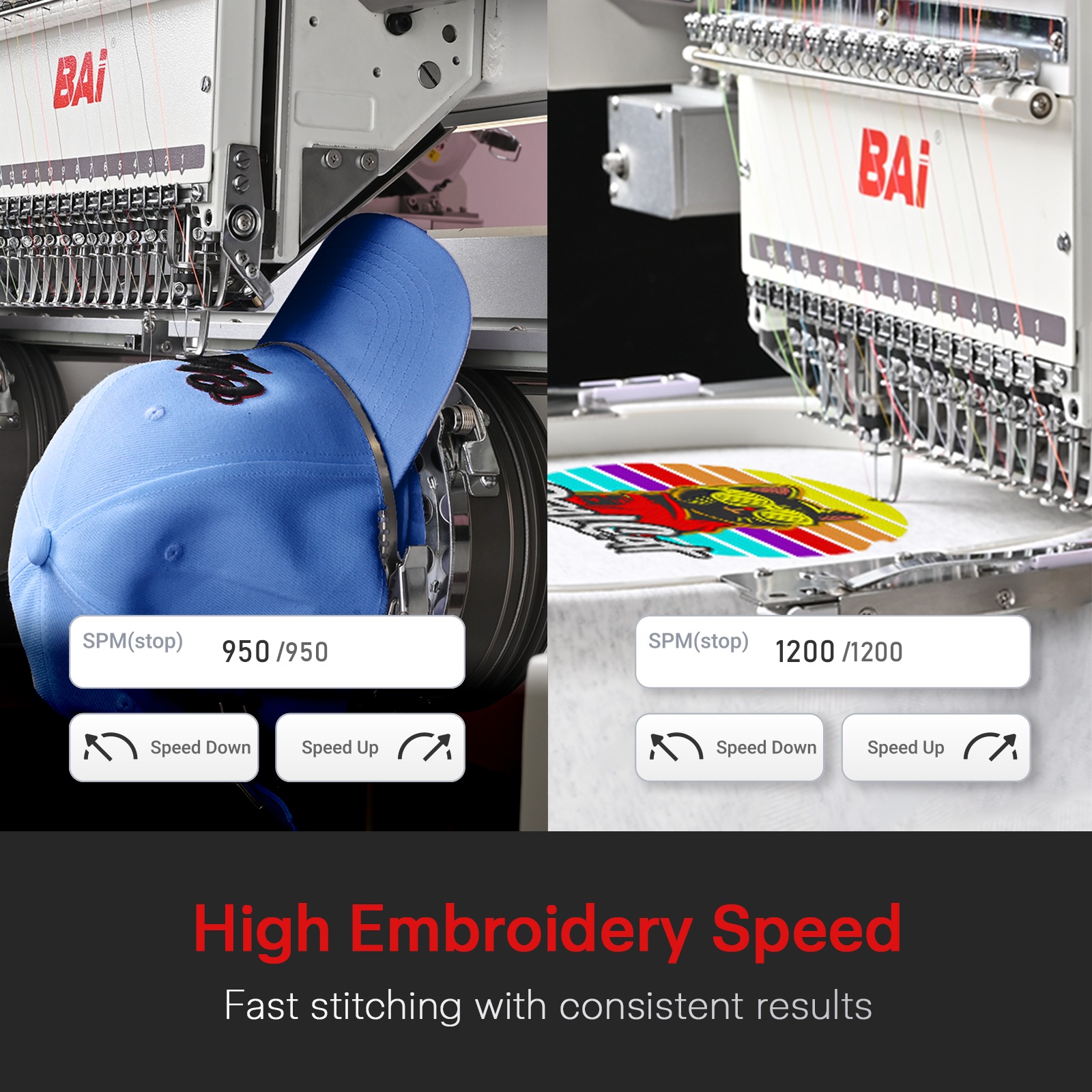

Fast Production Without Sacrificing Quality

Reach speeds up to 1,200 stitches per minute on flat embroidery and up to 950 stitches per minute on caps for faster turnaround and consistent results.

Specifications

Configuration

Heads	1
Needles	15
Max speed	1200 SPM
Max embroidery area	400 x 500 mm (15.7″ x 19.7″)
Voltage	AC100-240V, 50/60Hz
Connection	USB and Wi-Fi
Control panel	Institch OS5 TouchScreen

Size and weight

Machine size	166 x 108 x 106 cm (65.4″ x 42.5″ x 41.7″)
Machine weight	265 kg (584 lbs)
Package size	118 x 113 x 88 cm (46.5″ x 44.5″ x 34.6″)
Package weight	335 kg (739 lbs)

What’s included

Cap Station (1pc)
Cap Hoop (2pcs)
Cap Driver (1pc)
Heavy-duty Steel Stand (1set)
Handrail (1set)
Support Bars (8pcs)
Needles (10pcs)
Prewound Bobbins (1box)
Hoop set (6 Sizes): 3.5″ (2pcs), 4.7″ (2pcs), 5.9″ (2pcs), 7.8″ (2pcs), 11.4″ (2pcs), 15.6″ (1pc)
Stabilizer
Thread

Machines

The Mirror

Entry-level commercial embroidery

Needles	15
Heads	1
Max Hat Speed	850 SPM

More Details

The Vision

Advanced single-head embroidery

Needles	15
Heads	1
Max Hat Speed	950 SPM

More Details

The Vision — 2 Heads

Double-head for business growth

Needles	15
Heads	2
Max Hat speed	950 SPM

More Details

FAQ

How is THE VISION different from an entry-level machine?

THE VISION runs at higher speed and stronger needle penetration than entry-level models, making it suited for higher-volume production and structured items like caps.
